Lopako halihali SDCXRB-03A1/RB06-900/ RB08/ RB08A3-1490/ RB08A3-1700/ RB08A3-1840/ RB10/ RB20/ RB50/ RB130/ RB165/ RB210

ʻO kahi hoʻolauna pōkole o ka huahana

Hoʻohana nui ʻia nā robots ʻoihana ʻoihana i ka wili, polishing, hoʻouka a me ka blanking ma luna / mai nā mea mīkini, ka lawe ʻana i nā laina hana maʻalahi, a me nā mea ʻē aʻe.ʻO kona pōmaikaʻi, hiki iā ia ke hoʻokō i nā ʻano hana āpau i manaʻo ʻia e ka hoʻolālā ʻana.Hoʻohui ia i nā pono o ke kanaka a me ka mīkini i kona ʻano a me kāna hana, ʻoi aku ka hoʻopili ʻana i ka naʻauao artificial a me ka hiki ke hoʻololi.

KĀHEA IĀ MĀ˚OU

Huahana Huahana

Nā ʻāpana ʻenehana

Hōʻike No.		Degere o ke Kuokoa	Ke ano hookele	Uku uku (kg)	Hoʻonohonoho hou ʻia ka pololei (mm)	Ka laulā o ka neʻe (°)						Ka māmā holo kiʻekiʻe (°/s)						ʻO ka torque hiki ke ʻae ʻia (N. m)			Uku o ka neʻe (mm)	Deaa kaumaha (kg)
Hōʻike No.		Degere o ke Kuokoa	Ke ano hookele	Uku uku (kg)	Hoʻonohonoho hou ʻia ka pololei (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Uku o ka neʻe (mm)	Deaa kaumaha (kg)

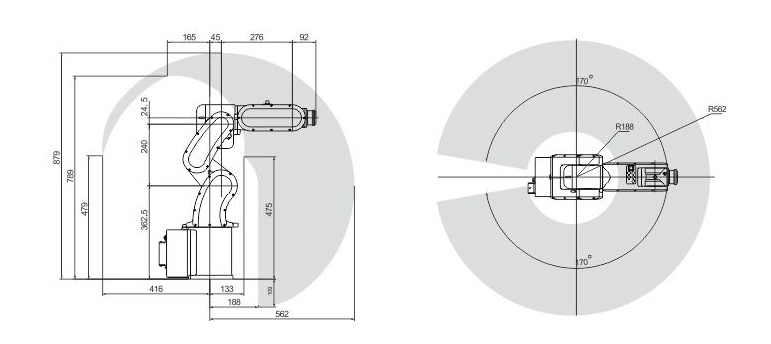

SDCX-RB03A1		6	AC servo drive	3	±0.02	±150	+136~-51	+64~-131	±150	±120	±360	375	375	419	600	600	750	9.3	9.3	4.5	562	36
SDCX-RB06-900		6	AC servo drive	6	±0.03	±170	+135~100	+155~110	±170	±120	±360	337.5	270	375	300	375	468	12	10	6	900	60
SDCX-RB08		6	AC servo drive	8	±0.05	±170	+120~-85	+75~-155	±180	±135	±360	154	154	154	420	252	620	14	12	7	1389	180
SDCX-RB08A3-1490		6	AC servo drive	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	200	200	200	400	356	600	14	12	7	1490	185

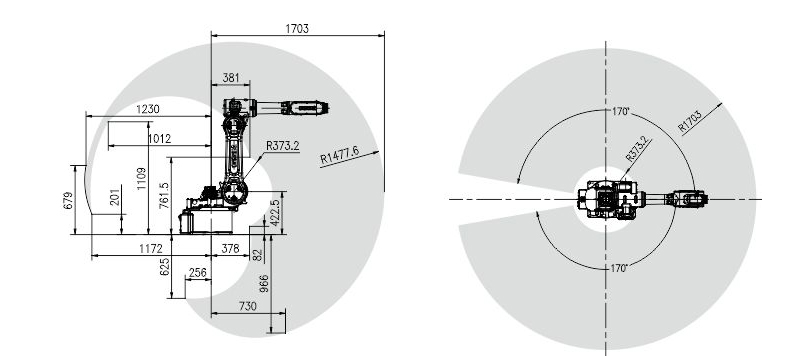

SDCX-RB08A3-1700		6	AC servo drive	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	180	180	180	400	356	600	14	12	7	1700	187
SDCX-RB08A3-1840		6	AC servo drive	6	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	160	160	160	400	356	600	14	12	7	1840	180
SDCX-RB10		6	AC servo drive	10	±0.05	±170	+150~-85	+85~-170	±360	±120	±360	200	160	200	360	360	600	43.2	43.2	25.4	1550	240

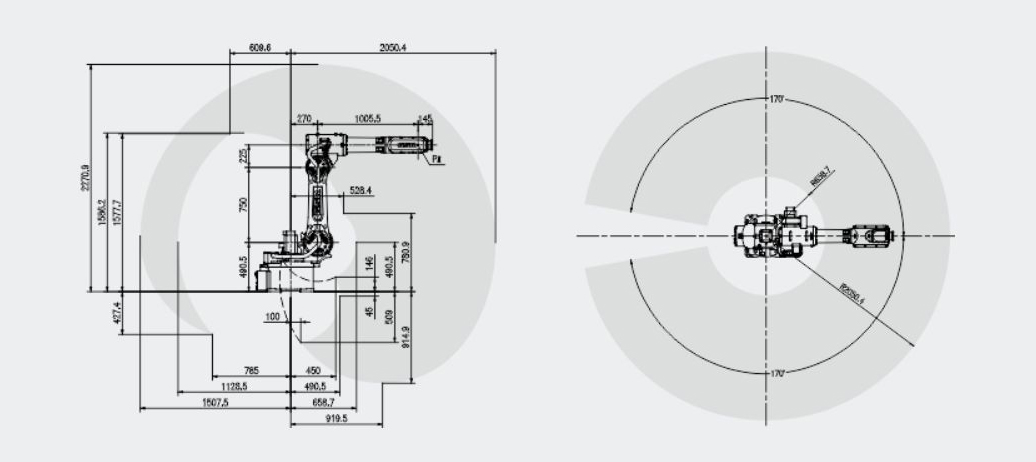

SDCX-RB20 Series	SDCX-RB06-2060	6	AC servo drive	6	±0.05	±170	+145~-100	+75~-165	±180	±135	±360	165	165	170	300	356	600	40	12	7	2060	285
	SDCX-RB15L	6	AC servo drive	15	±0.05	±170	+145~-100	+75~-165	±180	±133	±360	165	165	170	300	198	394	40	50	22	1794	300
	SDCX-RB20	6	AC servo drive	20	±0.05	±170	+132~-95	+73~-163	±180	±133	±360	165	165	170	300	198	394	40	50	22	1595	290
SDCX-RB50		6	AC servo drive	50	±0.05	±178	+130~-90	+75~-200	±360	±115	±360	171	171	171	215	251	365	196	196	127	1956	600
SDCX-RB130		6	AC servo drive	130	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	165	174	238	951	951	490	2715	1420
SDCX-RB165		6	AC servo drive	165	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	152	160	220	951	951	490	2463	1400
SDCX-RB210		6	AC servo drive	210	±0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	144	118	200	1274	1274	686	2463	1430
SDCX-RB300		6	AC servo drive	300	±0.20	±175	±55	+116~-85	±360	±115	±360	85	95	95	120	120	180	1274	1274	686	2508	1500

Hōʻalo i ka hoʻopili ʻana me nā kinoea a me nā wai hiki ke wela, pahū a ʻino;Mai pīpī i ka wai, ka aila a me ka lepo;E mālama i nā kumu leo uila (plasma)
