Hoʻopaʻa ʻana i ka Robot SDCX RMD-300/200/160/120/35/08/110/20/50

ʻO kahi hoʻolauna pōkole o ka huahana

Hoʻohana nui ʻia ka robot stamping no ka stacking, destacking, transport a me nā hana ʻē aʻe i ke kahua o ka hoʻopili ʻana, ka mea inu, ka ʻoihana kemika, ka meaʻai, a me nā mea ʻē aʻe, e hāʻawi ana i nā mea hoʻohana me ka hoʻonohonoho piha o ka wikiwiki, palekana, maʻalahi, pololei a me ka hoʻonohonoho ʻana i nā hopena hana.

KĀHEA IĀ MĀ˚OU

Huahana Huahana

Nā ʻāpana ʻenehana

Hōʻike No.	Degere o ke Kuokoa	Ke ano hookele	Uku （KG）	Ka pololei o ka hoonoho ana (mm)	Ka laulā o ka neʻe (°)				Ka māmā holo kiʻekiʻe (°/s)				ʻAe ʻia ka hoʻouka ʻana o ka lima lima (kg·m²)	Poʻai pōʻai (pōkole/hola)	Uku o ka neʻe (mm)	Kaumaha Kūloko （kg）
Hōʻike No.	Degere o ke Kuokoa	Ke ano hookele	Uku （KG）	Ka pololei o ka hoonoho ana (mm)	J1	J2	J3	J4	J1	J2	J3	J4	ʻAe ʻia ka hoʻouka ʻana o ka lima lima (kg·m²)	Poʻai pōʻai (pōkole/hola)	Uku o ka neʻe (mm)	Kaumaha Kūloko （kg）

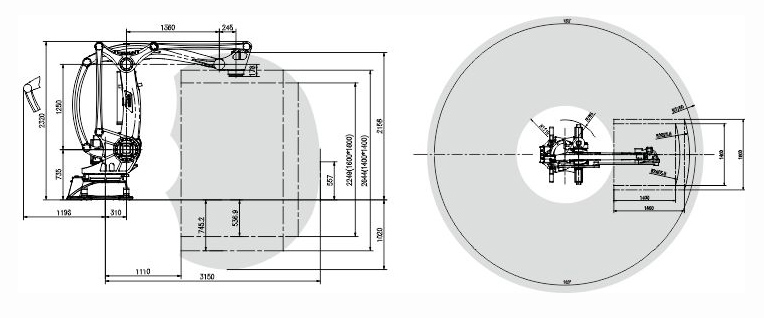

SDCX-RMD300	4	AC servo drive	300	±0.5	±180	± +100~-44	± +121~-15	±360	85	90	100	190	134	1000^③	3150	1500
SDCX-RMD200	4	AC servo drive	200	±0.3	±180	± +100~-44	± +121~-15	±360	105	107	114	242	78	1300^③	3150	1500
SDCX-RMD160	4	AC servo drive	160	±0.3	±180	± +100~-44	± +121~-15	±360	123	123	128	300	78	1500^③	3150	1500
SDCX-RMD120	4	AC servo drive	120	±0.3	±180	± +100~-44	± +121~-15	±360	128	126	135	300	78	1560^③	3150	1500

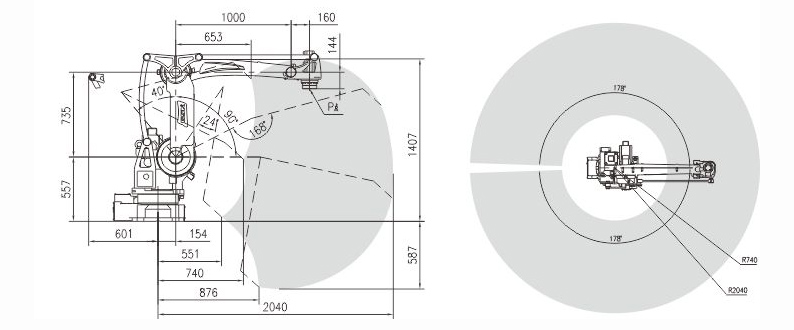

SDCX-RMD50	4	AC servo drive	50	±0.2	±178	± +90~-40	± +65~-78	±360	171	171	171	222	4.5	1700^②	2040	660
SDCX-RMD20	4	AC servo drive	20	±0.08	±1170	± +115~-25	± +70~-90	±360	170	170	185	330	0.51	1780^①	1720	256

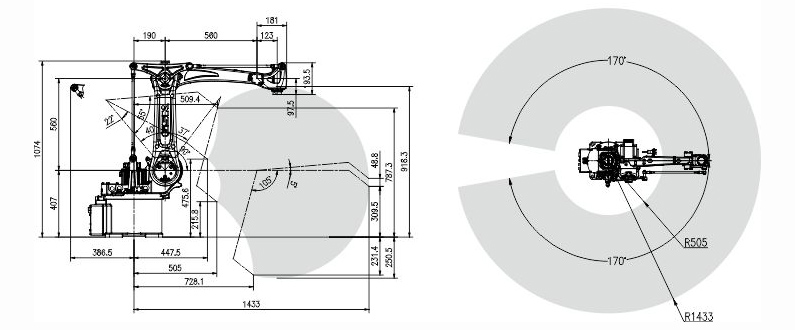

SDCX-RMD08	4	AC servo drive	8	±0.08	±170	± +90~-40	± +68~-90	±360	251	195	195	367.5	0.25	1800^①	1433	180

ʻŌlelo:

① ʻO 150mm kiʻekiʻe ka track track a me 1000mm ākea, a ʻo ka manawa pōʻai maoli e pili ana i nā kūlana hana maoli;

② ʻO 200mm ke kiʻekiʻe a me 1000mm ākea ka track track, a ʻo ka manawa pōʻai maoli e pili ana i nā kūlana hana maoli;

③ ʻO 400mm kiʻekiʻe ka track track a me 2000mm ākea, a ʻo ka manawa pōʻai maoli e pili ana i nā kūlana hana maoli;

Hōʻalo i ka hoʻopili ʻana me nā kinoea a me nā wai hiki ke wela, pahū a ʻino;Mai pīpī i ka wai, ka aila a me ka lepo;E mālama i nā kumu leo uila (plasma)
